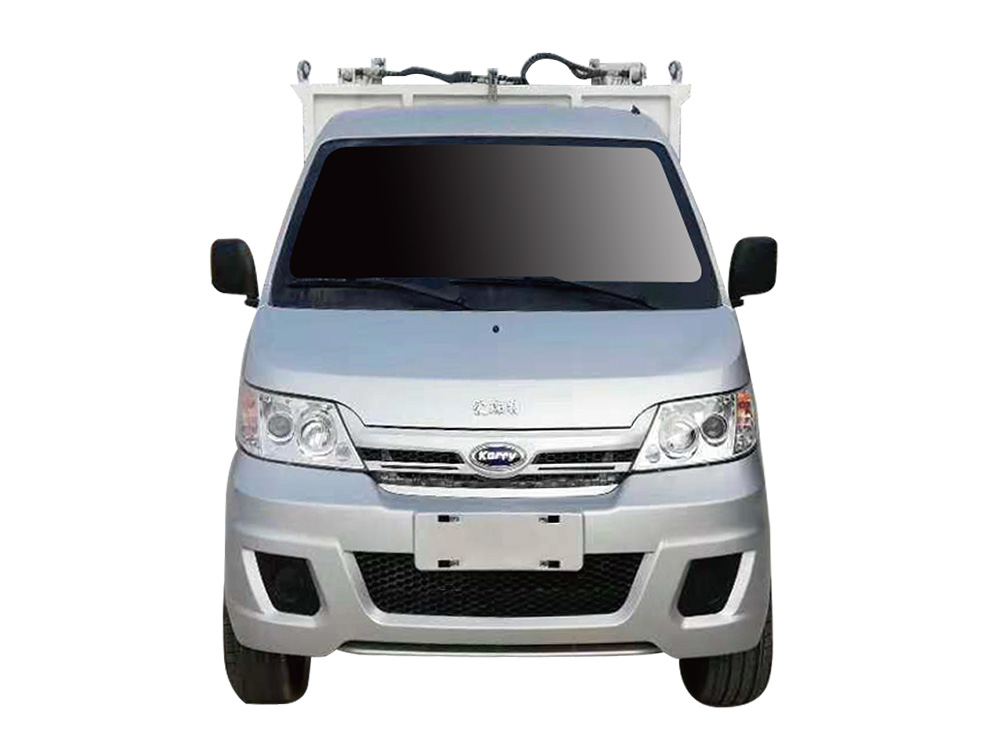

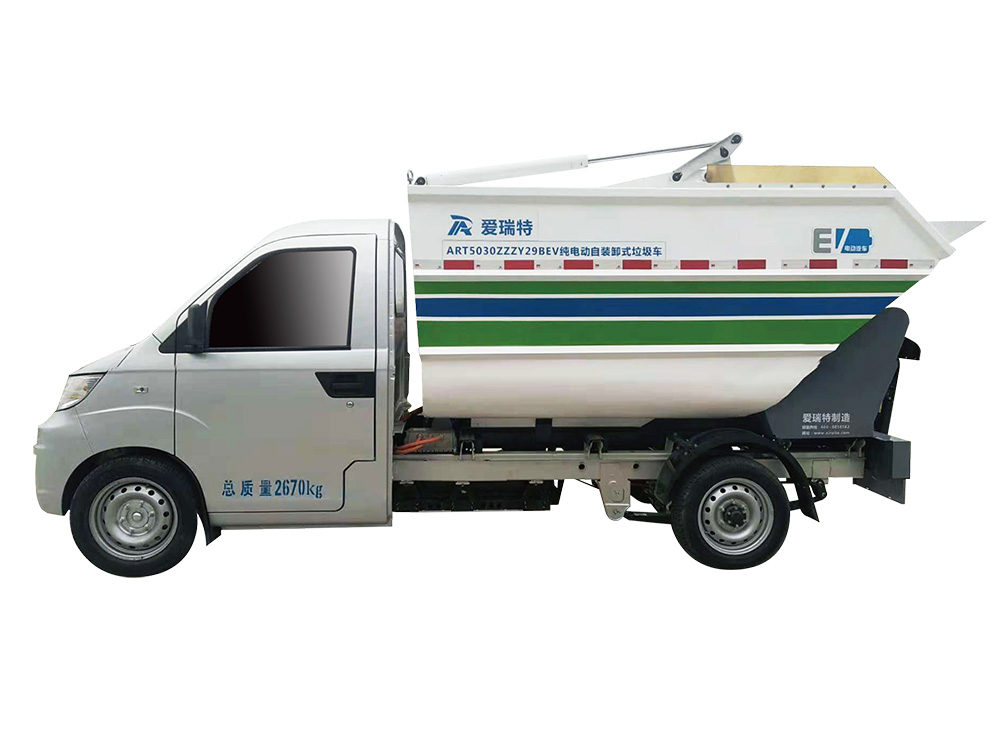

ART5030ZZZY29BEV Pure electric garbage collection vehicle is mainly used for the classified collection and transportation of barreled garbage in residential areas, towns, commercial areas, tourist attractions, schools and other places, with good sealing, pure electric operation, low cost and zero emission.
◆ Box body: high quality and high strength steel ship type box body, no dripping, electrophoresis antirust treatment, corrosion resistance;

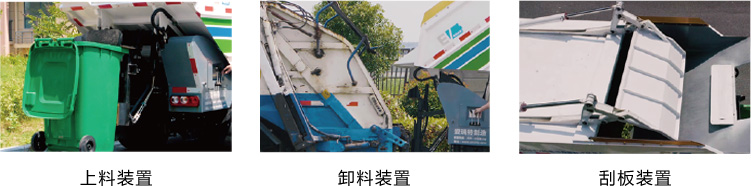

◆ Feeding system: rear bucket tipping mechanism feeding;
◆ Compression system: four link high efficiency rotary compression plate, which can improve the loading capacity;

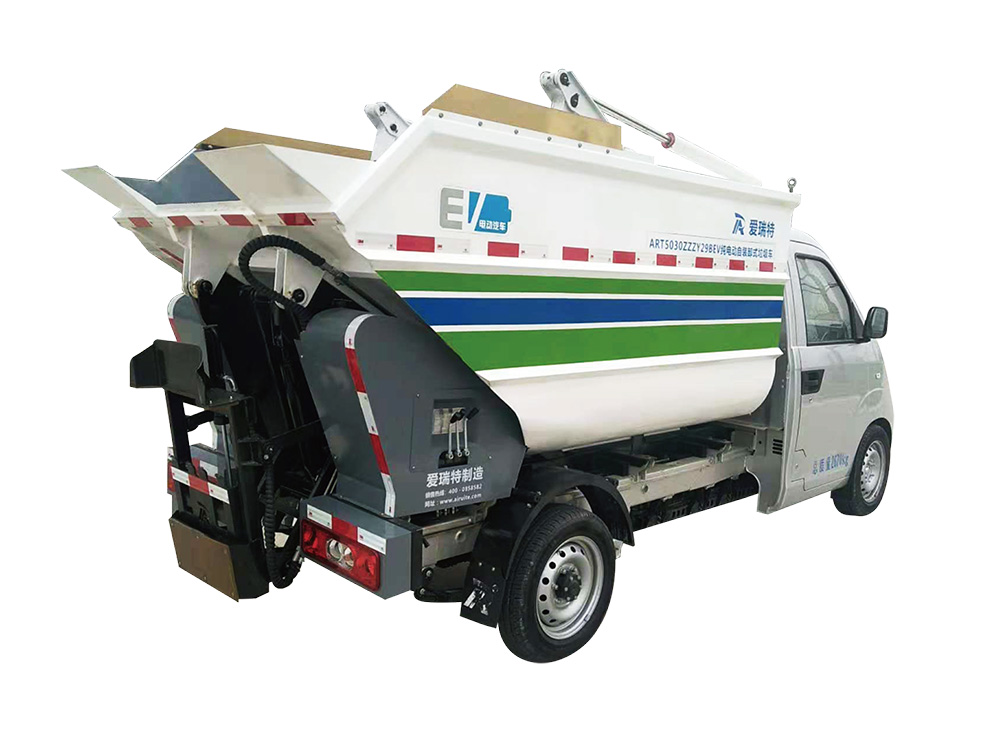

◆ Unloading system: rear dumping type high position tipping unloading, can also dock with other large and medium-sized waste compression vehicles (standard type).
| Parameters | ART5030ZZZY29BEV Pure electric garbage truck |
| Chassis model / brand | SQR1032BEVH08-E/karry |
| Total mass | 2670kg |
| curb weight | 2260kg |
| wheelbase | 3050mm |
| Battery brand | GuoXuan hi tech (LiFePO4) |
| Battery capacity | 41.34kWh |
| Maximum speed | 105km/h |
| Maximum climbing gradient | 20% |
| Minimum turning radius | 6m |
| Volume of garbage can | 3.6m3 |
| Feeding cycle time | ≤20s |
| Discharge cycle time | ≤30s |
| Overall dimension (L × w × h) | 5050×1600×2370mm |
