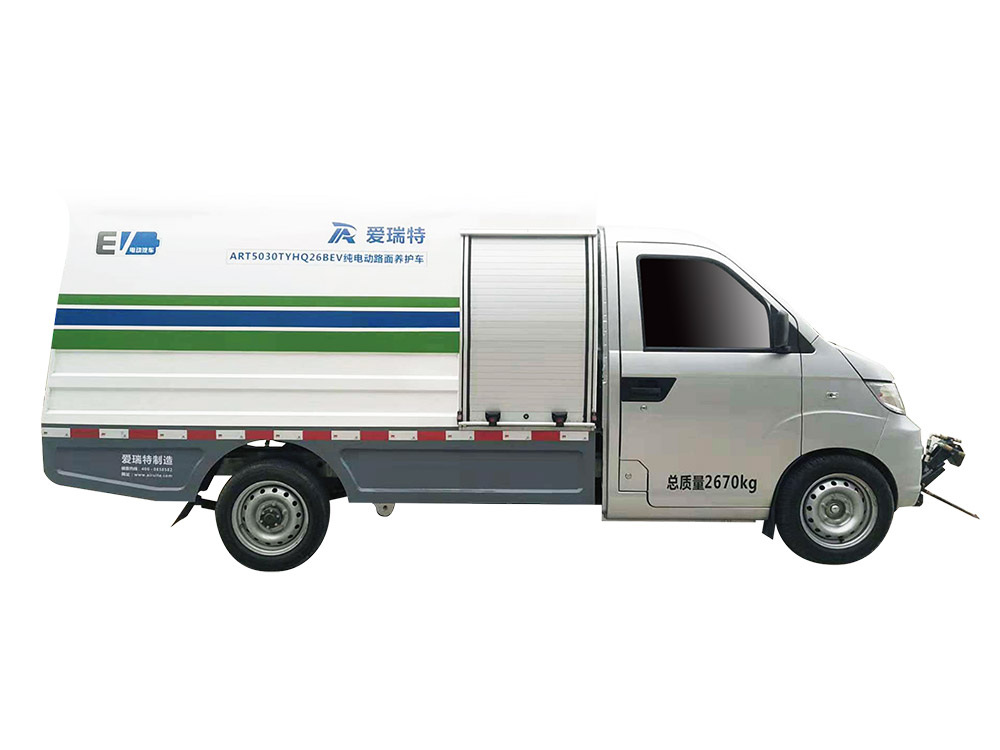

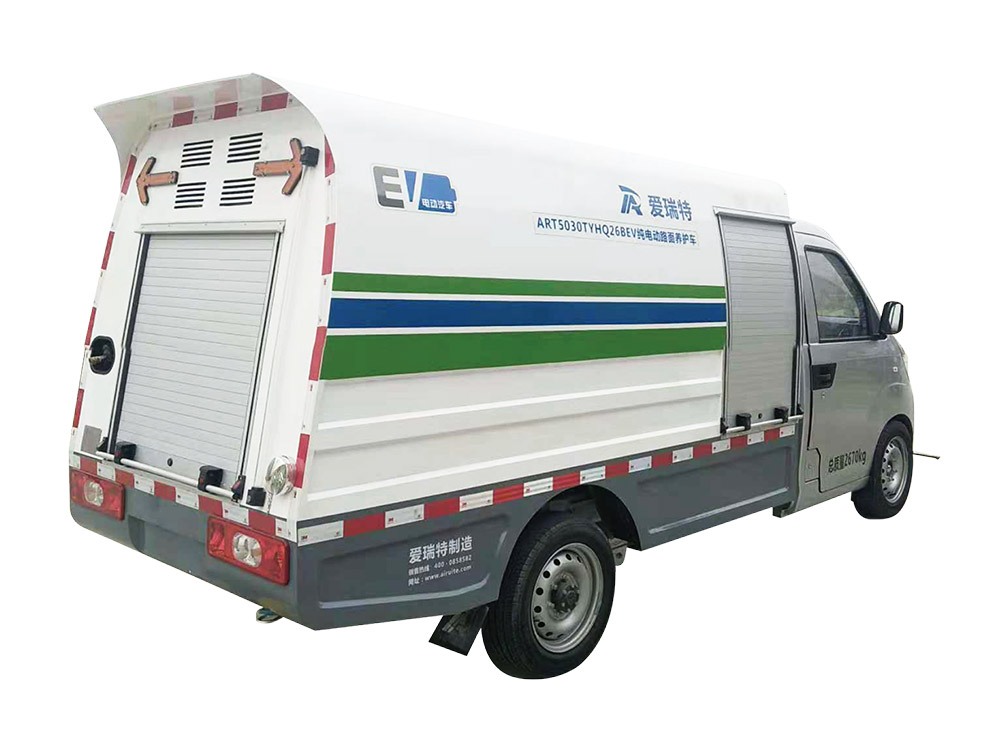

ART5030TYHQ26BEV pure electric road maintenance vehicle is mainly used for washing and maintenance of motorway, non motorway, sidewalk, back street lane, municipal garden, property community and other roads. The lower left and right side flush can be combined with the sweeper, and the front high-pressure flushing and multi angle flushing device can be used to clean the dirt and urban psoriasis at the road surface, road teeth and traffic signs. It is also suitable for garden medicine, and the rear floor washing cart, washing site and high-pressure water gun can be used to wash the road sections where the maintenance vehicles are inconvenient to stop.
◆Box body: high quality and high strength steel plate, with curtain door for fire truck on three sides of the box body, with beautiful atmosphere;
◆Flushing system: lower left and right side flushing, front high-pressure flushing and multi angle flushing device, rear floor washing cart, washing site and high-pressure water gun;
◆Water pump system: compound excitation brushless DC motor with large flow and high pressure water pump imported from Italy, stable performance.
| Parameters | ART5030TYHQ26BEV Pure electric road maintenance vehicle |
| Chassis model / brand | SQR1032BEVH08-E/karry |
| Total mass | 2670kg |
| curb weight | 2100kg |
| wheelbase | 3050mm |
| Battery brand | GuoXuan hi tech (LiFePO4) |
| Battery capacity | 41.34kWh |
| Maximum speed | 105km/h |
| Maximum climbing gradient | 20% |
| Minimum turning radius | 6m |
| Volume of water tank | 1.2m3 |
| Cleaning width of front spray bar | 1.7m |
| Offset cleaning width | 12m |
| Pump flow（L/min ） | 30L/min |
| Pump pressure（Mpa） | 0~20Mpa |
| Overall dimension (L × w × h) | 5160×1640×2055mm |
