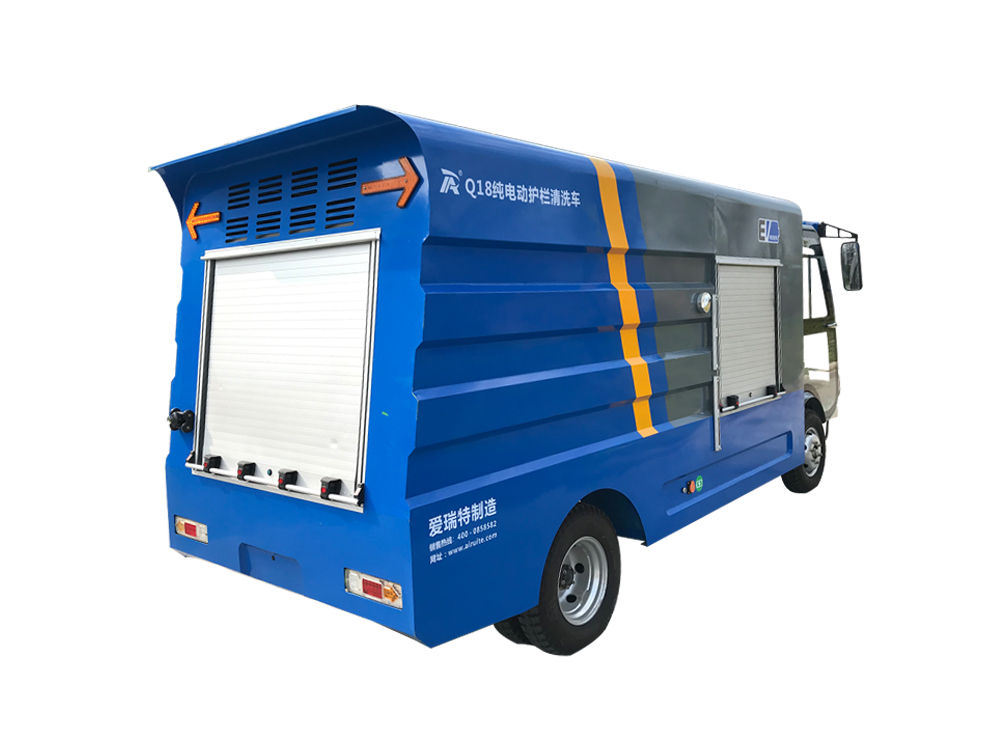

Ruibao q16l pure electric high-voltage guardrail cleaning vehicle is mainly used for guardrail cleaning and road washing and maintenance of motorway and non motorway. The lower left and right side flush can be combined with the sweeper, the front high-pressure flushing and multi angle flushing device can be used to clean the dirt on the road surface, road teeth and traffic signs, and the rear high-pressure water gun can be used to flush the garbage cans and billboards.
◆ Body: fully enclosed cab, transparent glass on three sides, front stainless steel bumper, high-quality high-strength metal body, good working sight, safe and beautiful.
◆ Battery: 72V / 600ah lithium battery pack

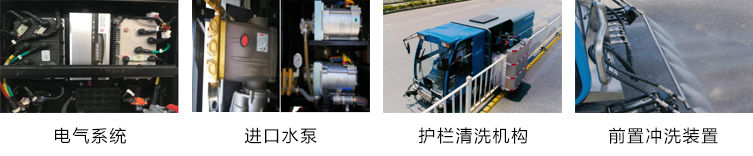

◆ Guardrail cleaning mechanism: independent pure hydraulic electric control mechanism, using four groups of roller brush clamping isolation guardrail cleaning, high-pressure water auxiliary cleaning, can realize the omni-directional cleaning of the front, back, left and right sides of the guardrail.
◆ Water pump system: compound excitation brushless DC motor with high pressure water pump imported from Italy, stable performance
◆ Flushing device: lower left and right side flushing, front high pressure flushing and multi angle flushing device, rear high pressure water gun
◆ Seat: cushion and shock absorption seat, with gravity sensing device, strong safety
◆ Steering system: electric power steering system
◆ Tire: front two rear four tire, radial brand vacuum tire, wear resistance, long service life
◆ Temperature control system: air conditioning
| Parameters | Ruibao q16l pure electric high voltage guardrail cleaning vehicle |
| Voltage / rated power | 72V/30Kw |
| Height of cleaning guardrail | ≤1200m |
| Thickness of cleaning guardrail | 0-200mm |
| Pump pressure | 0-20Mpa |
| Tank capacity | 1800L |
| Flushing width | ≥12m |
| Maximum driving speed | 35Km/h |
| Working speed | ≤2Km/h |
| Turning radius | ≤8m |
| Dimensions | 5400*1650*2300mm |
| Net weight | 3200kg |
